TSR Rotating tube furnace range
Carbolite Gero's TSR rotating tube furnace range incorporates the same innovations developed for the TS split tube furnace series with the equipment required to process large batches of free-flowing material, such as powders.
The TSR range comprises a split tube furnace horizontally mounted on a base frame, and fitted with a friction drive rotation system, allowing for work tube rotations of up to 10 rpm. The frame can be manually tilted up to a maximum angle of 6˚ to suit the requirements of the material being processed.
Accessory work tubes can easily be exchanged to meet the different physical or chemical requirements of a process.
Optional built-in gas systems enable users to equip the TSR rotating tube furnace for operation under a modified atmosphere.
| Maximální teplota 1150 °C | Ø pece 125 mm |
| Topná délka 1000 mm | Number of heated zones 1 zone or 3 zones |
| Orientation horizontal | |
Carbolite Gero's new tube furnace range is at the pinnacle of furnace design. The culmination of over 80 years of experience in thermal engineering; combining the latest technological developments with solid construction, high-quality components and a sleek, modern aesthetic.
The rotating motion of the TSR helps increase the surface area of the sample material exposed to the atmosphere within the work tube, helping to speed up reaction times and improve the overall yield. A 5 litre capacity vibratory feeder and corresponding collection hopper makes the TSR the ideal choice for continuous heat treatment processes.
By viewing this webpage on a compatible mobile device you can click the ‘cube’ icon that allows you to view an augmented reality image of the product.
CC-T1 Touch Screen Controller
TSR rotating tube furnaces are equipped with ethernet communications and a programmable controller with 24 segments as standard:
Standard quartz work tube and optional metallic work tube
Gas flow control by a digital flow meter
We have a wealth of knowledge built up over years of assisting customers with their rotating tube furnace applications. Certain applications will benefit from a selection of custom options including:
Material movement options to aid movement of the material including:

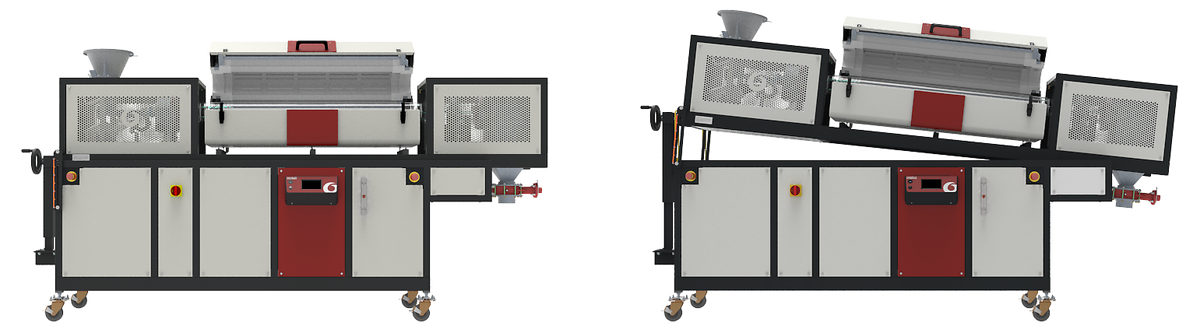

To assist in the flow of material through the work tube, the TSR can be tilted to a maximum of 6° using the manual winding wheel. By adjusting the angle of inclination, the operator can control the residence time of the material within the heated zone of the rotating tube furnace; the ability to change the angle ensures that the TSR has the flexibility to process many different materials with various grain sizes, from granules to powder.
Torrefaction je termochemický proces prováděný za nepřítomnosti kyslíku, při kterém dochází k částečnému rozkladu biomasy. Z biomasy se uvolňuje voda a těkavé látky a vzniká pevný suchý materiál známý jako biouhlí. V některých aplikacích lze bio-uhlím nahradit tradiční fosilní paliva, a přispět tak ke snížení emisí CO2.
V tomto videu byly v rámci procesu torrefaction k výrobě paliva z biouhlí použity jak střižný mlýn RETSCH SM 300, tak rotační trubková pec CARBOLITE GERO TSR.
Společnosti Verder Scientific nabízejí řešení, která podpoří váš proces v každém jeho kroku, od přípravy a analýzy vzorků až po tepelné zpracování a další.
| Maximální teplota (°C) | Max. vnější průměr trubky (mm) | Počet topných zón | Topná délka (mm) | Work tube length (mm) |
Rozměry: Vnější V x Š x H (mm) |
Maximální výkon (W) | |
|---|---|---|---|---|---|---|---|
| TSR1 11/125/1000 | 1150 | 125 | 1 | 1000 | 2000 | 1830 x 3150 x 700 | 6000 |
| TSR3 11/125/1000 | 1150 | 125 | 3 | 1000 | 2000 | 1830 x 3150 x 700 | 6000 |
Výhrady k technickému řešení a nedostatkům
| TSR1 11/125/1000 | Number of heated zones: 1 zone or 3 zones |
| TSR1 11/125/1000 | Maximální teplota: 1150 °C |
| TSR1 11/125/1000 | Ø pece: 125 mm |
| TSR1 11/125/1000 | Topná délka: 1000 mm |
